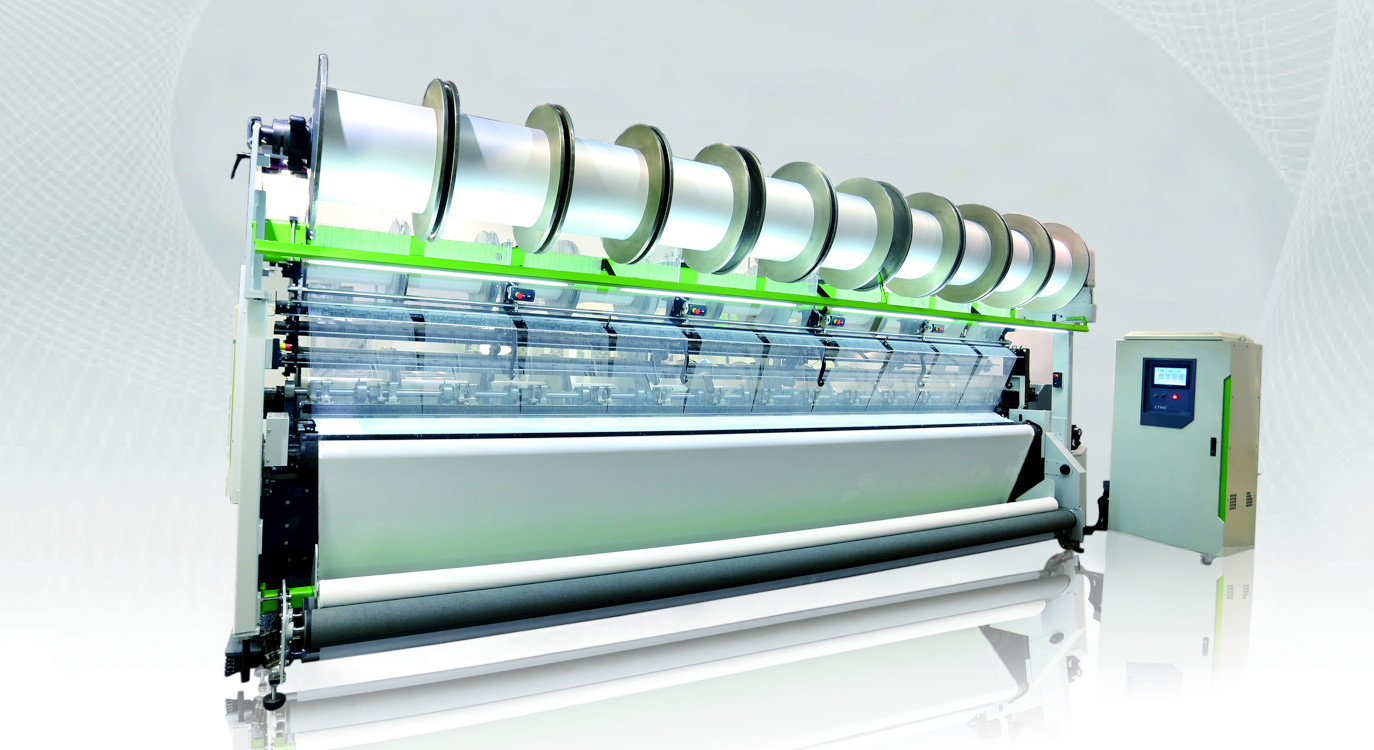

MACHINE APPLICATION
The machine uses various of fibers such as polyester, polyamide, acrylic, spandex, textured filament yarns, blended yarns to knit plain fabrics, stereo fabrics, elastic fabrics and kinds of pile fabrics which could be made into garments, home textile fabrics and industrial-using fabrics after finishing process.
| Machine type | E2528/2B | E2528/3A | E2528/4A |
| Needle | Compound Needle |
| Gauge | E22, E24, E28, E32, E36 |
| Working width(mm) | 132"(3352), 154"(3911), 186"(4752), 218"(5537), 238"(6045), 268"(6807), 280"(7112) |
| No. of guide bars | 2 | 3 | 4 |
| Mak. Knitting Speed(rpm) | 2500 | 2200 | 1800 |
| Pattern drive device | Pattern came or EL device with suitable transmission gear ratio |
| Let-off device | EBC let-off system |
| Take-up device | Electronic Take-up device |
| Max. fabric batching diameter(mm) | 800 |
| Dia.of sectioinal beam(mm) | Diameter or Beam Shaft: 152 Sectional Beam: 762X535(30" x 21") |
| Total machine power(kW) | 21 | 22.5 | 24 |
Manufactured by: CHANGDE, China
